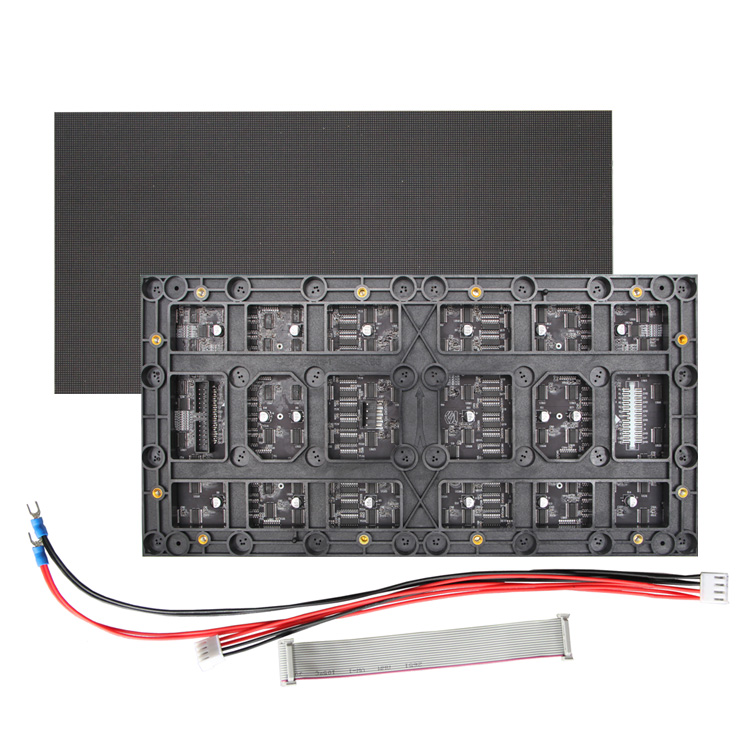

Outdoor LED displays Module
- R, G, and B chips are packaged in a gel to form a single pixel, with good color mixing and consistency
- Integrated light drive, uniform current distribution, low power consumption, and fast heat dissipation
- High brush drive IC, presenting delicate and smooth graphics
- Ultra high brightness, low attenuation, high reliability, and high weather resistance
- White inside and black outside, high contrast
- The surface of the module PCB has undergone three anti-corrosion treatments: moisture-proof, waterproof, and corrosion-resistant
- The module adopts PC engineering plastic bottom shell, AB sealing adhesive waterproof treatment, and UV resistance treatment, with a fully sealed surface structure and a waterproof level of IP65
- Long screen lifespan
- Ultra wide viewing angle, able to display high-quality display effects from various angles. The sheet metal box is used, with high accuracy, good flatness, and excellent thermal conductivity
| Pixel Pitch(mm) | P2.5-Pro | P3.076-Pro | P4-Pro | P5-Pro | P6.67-Pro | P8-Pro | P10-Pro |
|---|---|---|---|---|---|---|---|
| LED type | SMD1415 | SMD1415 | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD3535 |
| pixels/㎡ | 160000 | 105688 | 62500 | 40000 | 22477 | 15625 | 10000 |
| Cabinet Resolution | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 |
| Module dimension (W×H×D)(mm) | 320×160×15mm | 320×160×15mm | 320×160×15mm | 320×160×15mm | 320×160×15mm | 320×160×15mm | 320×160×15mm |
| Brightness (cd/㎡) | ≥4500cd/㎡ | ≥4500cd/㎡ | ≥4500cd/㎡ | ≥4500cd/㎡ | ≥4500cd/㎡ | ≥4500cd/㎡ | ≥4500cd/㎡ |
| Color Grayscale (Bit) | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 |
| View Angle | 120°(horz.)/ 120° (vert.) | 120°(horz.)/ 120° (vert.) | 120°(horz.)/ 120° (vert.) | 120°(horz.)/ 120° (vert.) | 120°(horz.)/ 120° (vert.) | 120°(horz.)/ 120° (vert.) | 120°(horz.)/ 120° (vert.) |
| Color temperature（K） | 2000～9000 Adjustable | 2000～9000 Adjustable | 2000～9000 Adjustable | 2000～9000 Adjustable | 2000～9000 Adjustable | 2000～9000 Adjustable | 2000～9000 Adjustable |
| Drive Type | 1/16scan | 1/13scan | 1/10scan | 1/8scan | 1/6scan | 1/5scan | 1/2scan |
| Refresh rate (Hz) | 3840Hz | 3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz |
| Contrast Ratio | 3000:1 | 3000:1 | 3000:1 | 3000:1 | 3000:1 | 3000:1 | 3000:1 |
| Frame frequency（Hz） | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| input voltage（V） | 110～240VAC ±15％ | 110～240VAC ±15％ | 110～240VAC ±15％ | 110～240VAC ±15％ | 110～240VAC ±15％ | 110～240VAC ±15％ | 110～240VAC ±15％ |
| Max Power Consumption(W/sqm) | ≤950 | ≤950 | ≤950 | ≤950 | ≤950 | ≤950 | ≤950 |
| Typical value power consumption(W/sqm) | 350W/ m²～450W/ m² | 350W/ m²～450W/ m² | 350W/ m²～450W/ m² | 350W/ m²～450W/ m² | 350W/ m²～450W/ m² | 350W/ m²～450W/ m² | 350W/ m²～450W/ m² |
| Operating Temperature(℃) | -10~40 | -10~40 | -10~40 | -10~40 | -10~40 | -10~40 | -10~40 |
| storage temperature (℃) | -40~60 | -40~60 | -40~60 | -40~60 | -40~60 | -40~60 | -40~60 |
| Operating Humidity （RH） | 10%~65% | 10%~65% | 10%~65% | 10%~65% | 10%~65% | 10%~65% | 10%~65% |
| storage Humidity （RH） | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| IP rating（front/rear） | IP45/IP65 | IP45/IP65 | IP45/IP65 | IP45/IP65 | IP45/IP65 | IP45/IP65 | IP45/IP65 |
| Installation Type | Fix\Hoisting | Fix\Hoisting | Fix\Hoisting | Fix\Hoisting | Fix\Hoisting | Fix\Hoisting | Fix\Hoisting |
