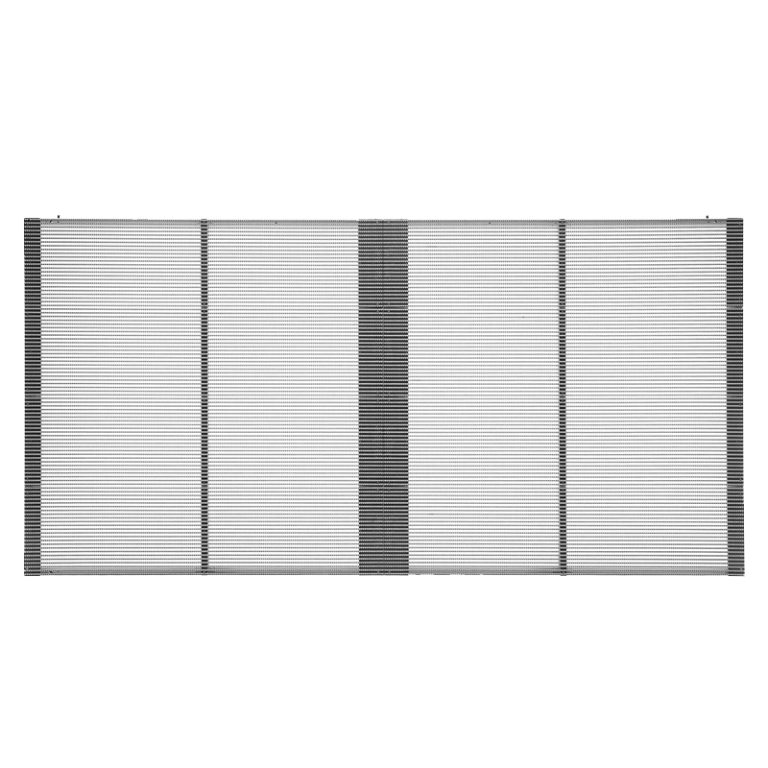

High Brightness Transparent LED

Standardized cabinet for flexible installation, multi-screen seamless splicing with light and thin design, and convenient for quick installation.
Permeability-oriented material selection and design, no influence on the original building appearance.
Brightness customizable on the basis of specific scenarios, ensuring the display effects even under the highlight indoor or the direct sunlight outdoor.
Runs silently with lower heat and effective heat dissipation.

Pixel Pitch(mm)	P2.604	P2.976	P3.91	P4.81
LED type	SMD1415	SMD1415	SMD1921	SMD1921
Panel material	Aluminum	Aluminum	Aluminum	Aluminum
Pixels/㎡	147474	112896	65410	43222
Cabinet dimension (W×H×D)(mm)	500×500	500×500	500×500	500×500
Cabinet Resolution	96×96	84×84	64×64	52×52
Cabinet weight (Kg)	7.1Kg	7.1Kg	7.1Kg	7.1Kg
Cabinet Resolution	192×192	168×168	128×128	104×104
Module dimension (W×H×D)(mm)	250×250	250×250	250×250	250×250
Brightness (cd/㎡)	≥4500cd/㎡	≥4500cd/㎡	≥4500cd/㎡	≥4500cd/㎡
Color Grayscale (Bit)	14-16	14-16	14-16	14-16
View Angle	120°(horz.)/ 120° (vert.)	120°(horz.)/ 120° (vert.)	120°(horz.)/ 120° (vert.)	120°(horz.)/ 120° (vert.)
Color temperature（K）	2000～9000 Adjustable	2000～9000 Adjustable	2000～9000 Adjustable	2000～9000 Adjustable
Drive Type	1/20scan	1/21scan	1/16scan	1/13scan
Refresh rate (Hz)	1920～3840Hz	1920～3840Hz	1920～3840Hz	1920～3840Hz
Contrast Ratio	5000:1	5000:1	5000:1	5000:1
Frame frequency（Hz）	50/60Hz	50/60Hz	50/60Hz	50/60Hz
AC input voltage（V）	110～240VAC ±15％	110～240VAC ±15％	110～240VAC ±15％	110～240VAC ±15％
Max Power Consumption(W/sqm)	≤900	≤900	≤900	≤900
Typical value power consumption(W/sqm)	260W/ m²	260W/ m²	260W/ m²	260W/ m²
Operating Temperature(℃)	-10~40	-10~40	-10~40	-10~40
Storage temperature (℃)	-40~60	-40~60	-40~60	-40~60
Operating Humidity （RH）	10%~65%	10%~65%	10%~65%	10%~65%
Storage Humidity （RH）	10%~90%	10%~90%	10%~90%	10%~90%
IP rating（front/rear）	IP65	IP65	IP65	IP65
Installation Type	Fix\Hoisting	Fix\Hoisting	Fix\Hoisting	Fix\Hoisting
